Open All | Close All

System Solution

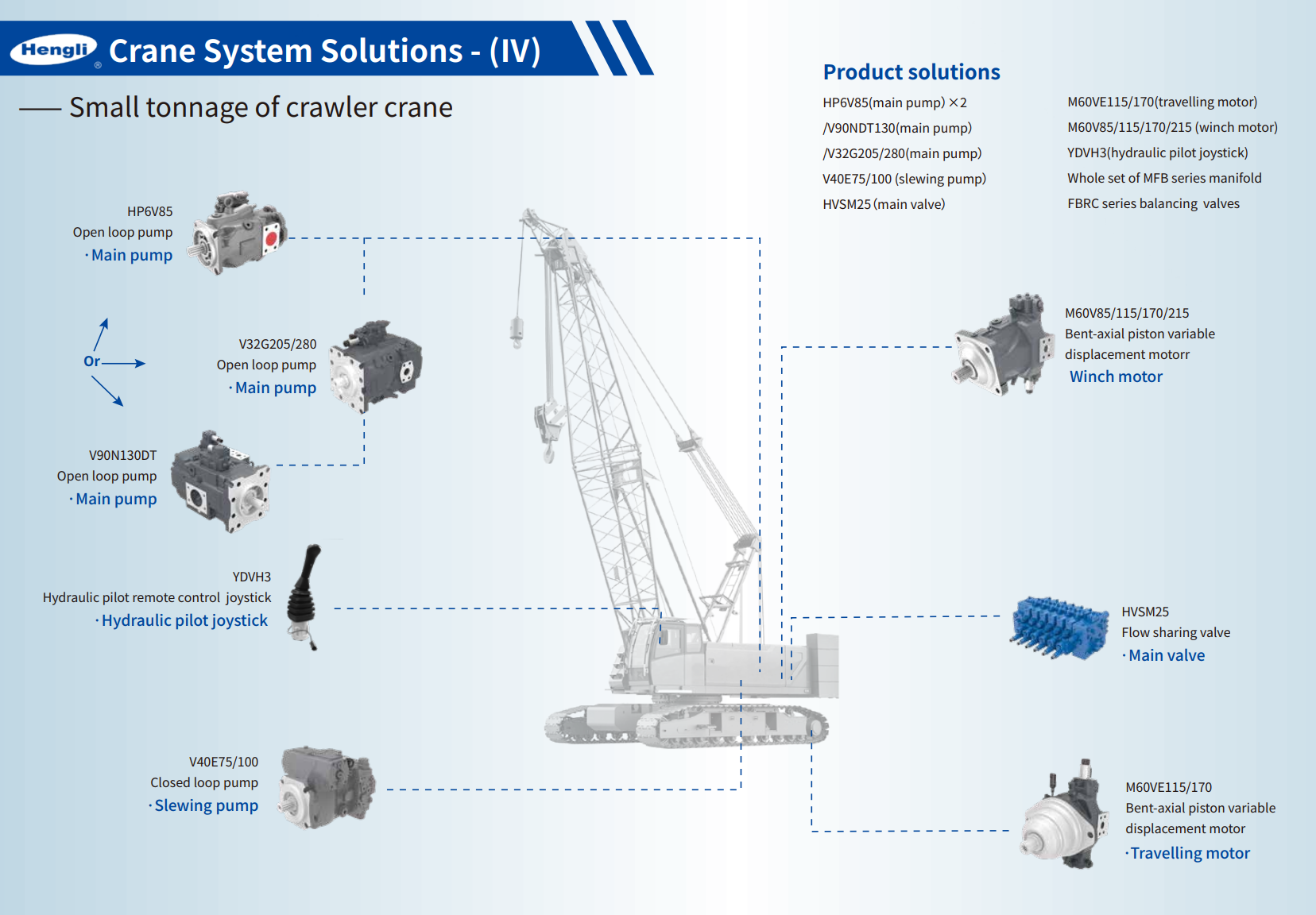

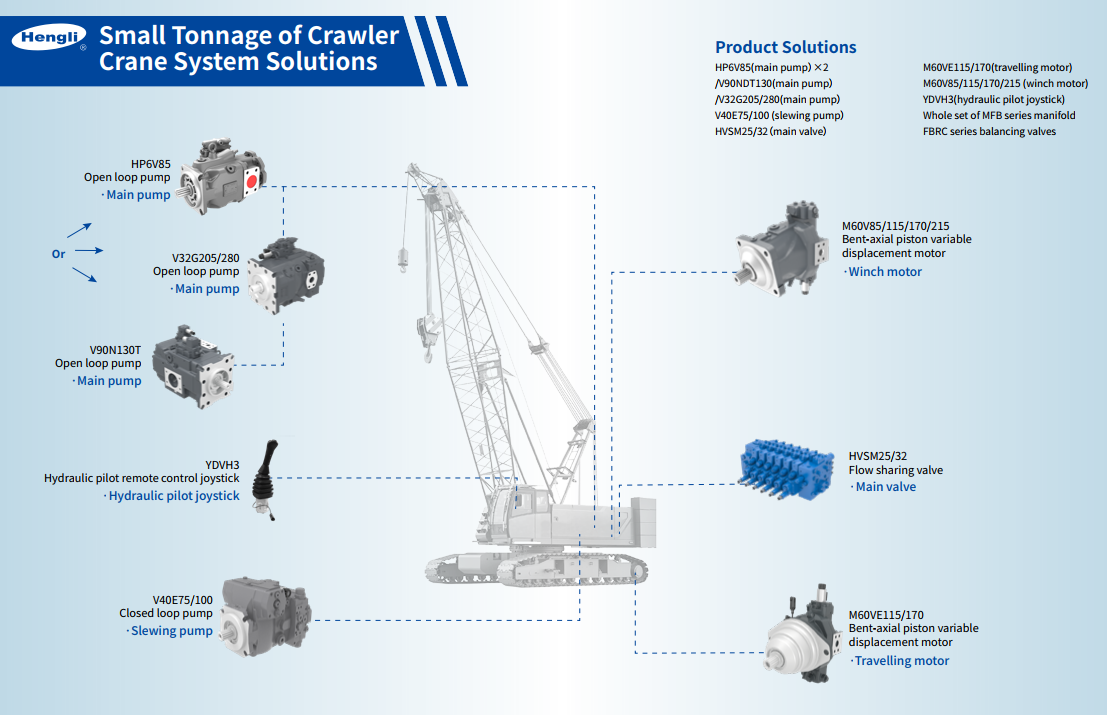

Functional	Product Model	Docs
Functional	Product Model	Docs
Main Pump	HP6V85，V90N130-T , V32G205/280	HP6V , V90N-T , V32G
Slewing Pump	V40E75/100	V40E
Winch Motor	M60V85/115/170/215	M60V(E)
Walking Motor	M60VE115/170	M60V(E)
Main Valve	HVSM25	HVSM25(WL)
Hydraulic Pilot Joystick	YDVH3	YDVH3
Balancing Valve	FBRC Series Balancing Valves	FBRC
Hydraulic Cylinder	Complete Set of Hydraulic Cylinder

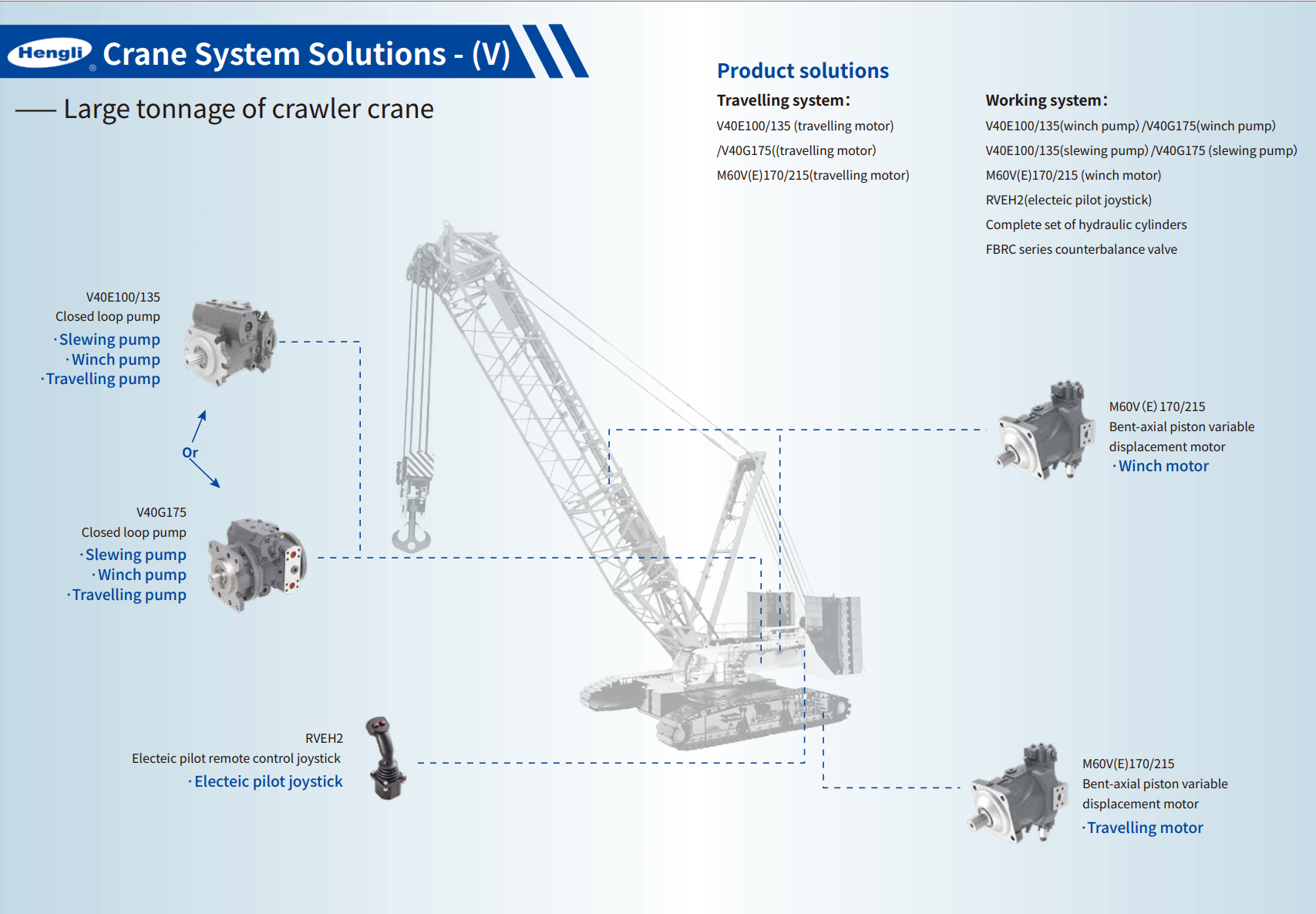

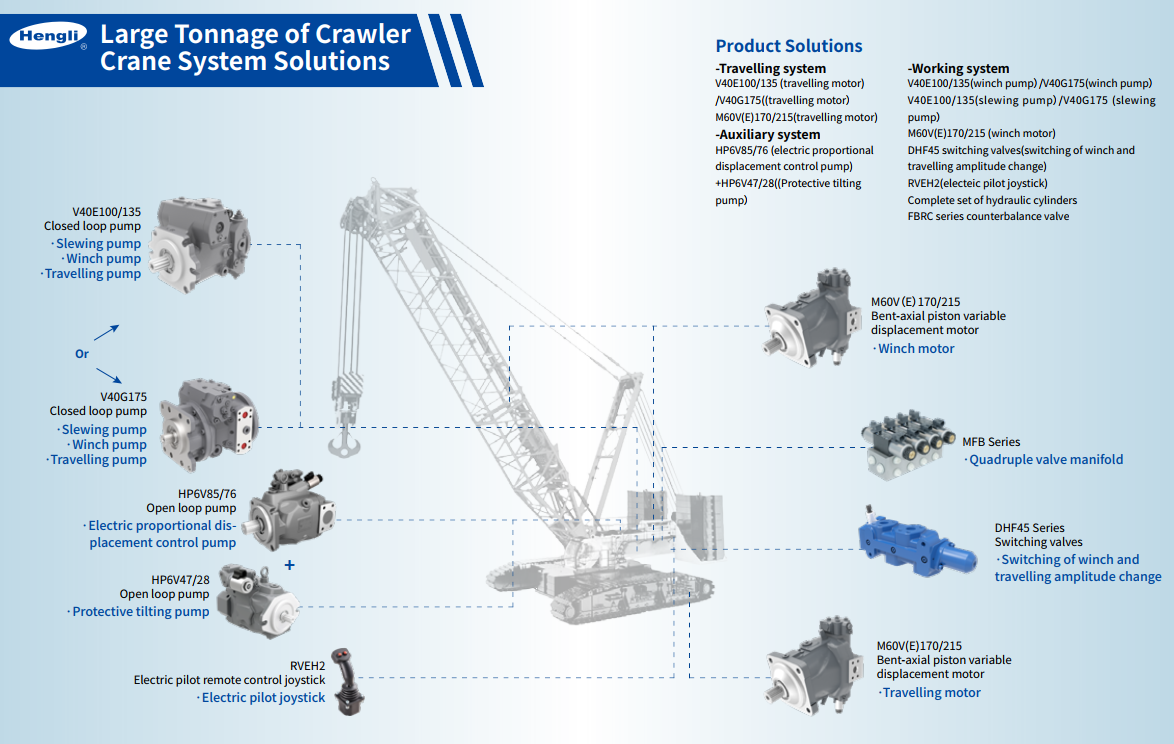

Functional		Product Model	Docs
Functional		Product Model	Docs
Walking System	Walking Pump	V40E100/135 , V40G175	V40E , V40G
Walking System	Walking Motor	M60V(E)170/215	M60V(E)
Working System	Winch Pump	V40E100/135, V40G175	V40E , V40G
	Winch Motor	M60V(E)170/215	M60V(E)
	Slewing Pump	V40E100/135, V40G175	V40E , V40G
	Electeic Pilot Joystick	RVEH2	RVEH
	Balancing Valve	FBRC Series Balancing Valves	FBRC
	Hydraulic Cylinder	Complete Set of Hydraulic Cylinder

Accessory Component

Function		Product Model	Download
Function		Product Model	Download
Piston Pump	Main Function Pump（single pump）	HP6V,V32G	HP6V , V32G
	Main Function Pump（double pump）	V90N.DT	V90N-T
	Main Function Pump	V40E100/135,V40G175/280	V40E , V40G
	Slewing Pump	V40E100/135,V40G175	V40E , V40G
Piston Motor	Winch Motor	M60V(E)115/170/215	M60V(E)
Cylinder	Hydraulic Cylinder	A complete set of hydraulic cylinderCylinder

Product Advantage

- Piston Pump:

Open System:Small-tonnage HP5V medium-pressure pump can be used to improve the work efficiency through the matching of the main engine. At the same time, the spherical flow distribution technology is used to adapt to the high-speed impact conditions; Medium and large tonnage can choose V90N-T/P and V30G high-pressure pumps, and its heavy-duty design can well ensure the crane's requirements for safe and be reliable hoisting applications.
Medium and large tonnage can choose V90N-T/P and V30G high-pressure pumps, and its heavy-duty design can well ensure the crane's requirements for safe and be reliable hoisting applications.
